Nsateaa nomframa a wɔde yɛ cylinder(pneumatic finger anaa pneumatic gripper) tumi yɛ nneɛma ahorow a wɔde kyere nneɛma na ɛyɛ ade titiriw a ɛwɔ nnɛyi robɔt nsa mu. Wɔtaa de di dwuma wɔ nneɛma a wɔde kyekyere nneɛma ne nnuan adwumayɛbea ahorow mu de yɛ nnwinnade a ɛkyere nneɛma a wɔde yɛ adwuma. Nea edidi so yi de dwumadie paw ne adwumayɛ nnyinasosɛm a ɛwɔ mframa nsateaa mframa cylinder no mu.
I. Nsateaa Mframa Cylinder no Dwumadi
Mframa nsateaa a wɔsan frɛ no mframa mu gripper anaa mframa nsateaa a wɔde kyekyere nneɛma ho no yɛ afiri a ɛma mframa yɛ adwuma a ɛde mframa a wɔahyɛ no den di dwuma sɛ tumi de fa nneɛma a wɔde yɛ adwuma anaasɛ ɛkyere. Efii ase wɔ Japan, na efi saa bere no, nnwumakuw a wɔyɛ mfiri a wɔde yɛ adwuma wɔ ɔman no mu de adi dwuma kɛse. Ɛgyina ne su so no, wobetumi akyekyɛ mu ayɛ no nsateaa a ɛte sɛ Y- ne nsateaa a ɛyɛ tratraa. Mframa cylinder no ntwemu taa yɛ 16mm, 20mm, 25mm, 32mm, ne 40mm. N’adwuma titiriw ne sɛ ɛbɛsesa nnipa a wɔkyere nneɛma mu nnwuma, na ama nneɛma a wɔyɛ no yiye ne adwumayɛ mu ahobammɔ atu mpɔn wɔ ɔkwan a etu mpɔn so. SMC pneumatic finger series no yɛ mframa gripper mfiri a wɔtaa de di dwuma wɔ mfiridwuma mu no mu biako.
II. Nneɛma a Wɔde Paw Nsateaa a wɔde mframa gu mu (Pneumatic Grips) .
Gyina adwuma no kɛse, ne nsusuwii, emu duru, ne sɛnea wɔpɛ sɛ wɔde bedi dwuma so paw ɔkwan a wɔfa so bue ne nea wɔde to mu a ɛne ne ho di nsɛ anaasɛ ɔkwan a wɔfa so bue ne nea wɔde to mu wɔ pivot mu.
2. Gyina kɛse, nsusuwii, ntrɛwmu, dwumadie environmen,t ne botaeɛ a adwuma no, paw ntoatoasoɔ nsateaa pneumatic cylinders (mframa grippers).
3. Gyina mframa gripper no clamping tumi kɛse, clamping point no kwan, extension amoun,t ne stroke, kyerɛ mframa gripper no kɛse. Afei, sɛnea ahwehwɛde ahorow no kyerɛ no, paw nneɛma a ɛho hia a wubetumi apaw no bio.
III. Nsateaa mframa cylinder (Pneumatic Grips) no su ahorow .
Nsateaa mframa cylinder no nhyehyɛe nyinaa yɛ mmɔho-adwuma, a ɛma wotumi fa akwan abien-kwan so. Ɛtumi yɛ ne ho mfimfini ankasa na ɛwɔ repeatability pɛpɛɛpɛ a ɛkorɔn.
2. Tumi a ɛtwetwe no kɔ so yɛ nea ɛkɔ so daa.
3. Wobetumi de non-contact detection switches ahyɛ mframa cylinder no afã abien no nyinaa.
4. Akwan pii wɔ hɔ a wɔfa so de instɔlehyɛn ne nkitahodi.
IV. Adwumayɛ Nnyinasosɛm a ɛfa Nsateaa Pneumatic Cylinder ho

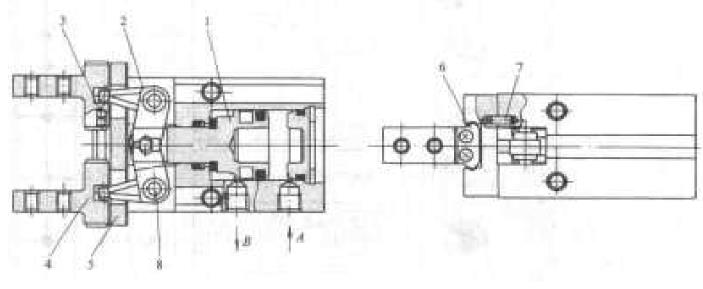

Adwumayɛ nnyinasosɛm mfonini a ɛwɔ nsateaa mframa cylinder no mu te sɛ nea edidi so yi:
Sɛ wɔtwe mframa fa hyɛn gyinabea A mu na wɔtwe mframa fa hyɛn gyinabea B mu a, mframa a ɛwɔ cylinder piston poma 1 no trɛw. Ɛdenam lever 2 a ɛkyinkyini twa lever axis 8 no ho hyia no so ma nsateaa abien 4 no kɔ abɔnten tẽẽ wɔ akwankyerɛ keteke kwan 5. Ne saa nti, nsateaa abien no bue na wogyae adwuma no. Gyinabea 6 no to nsateaa no a wɔde bue ano no ano hye, na pin 7 a wɔde si hɔ no hwɛ hu sɛ keteke kwan a ɛkyerɛ kwan tẽẽ no renhyia.
